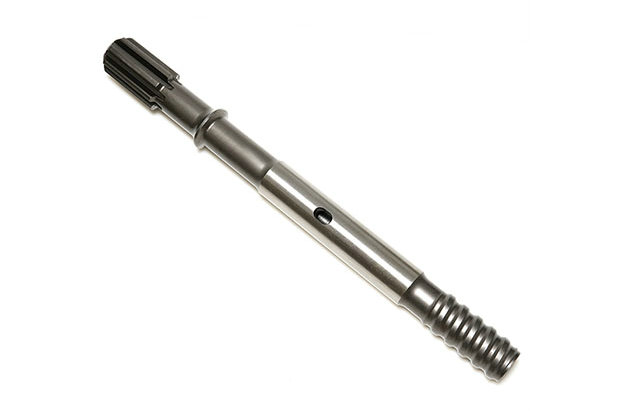

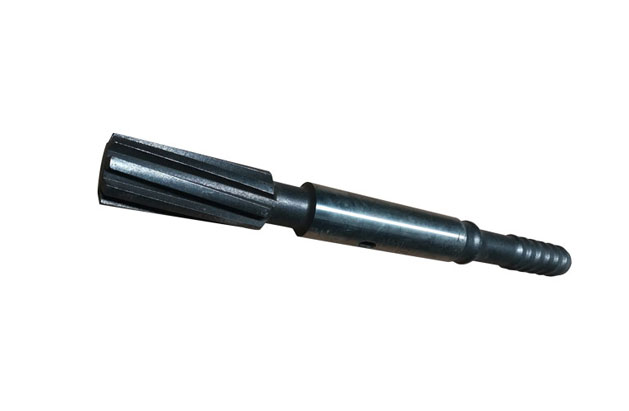

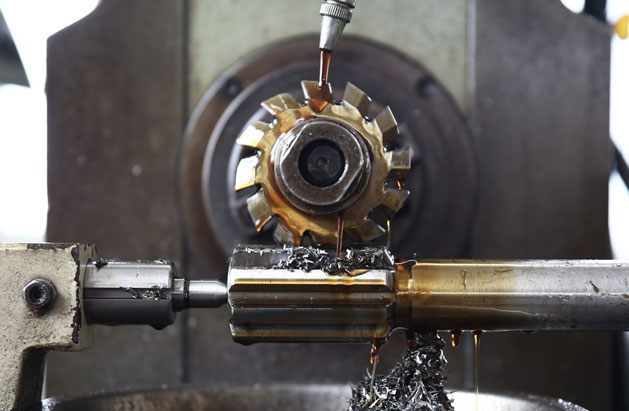

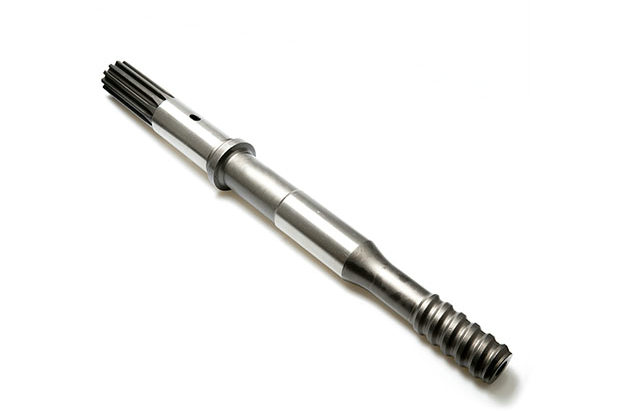

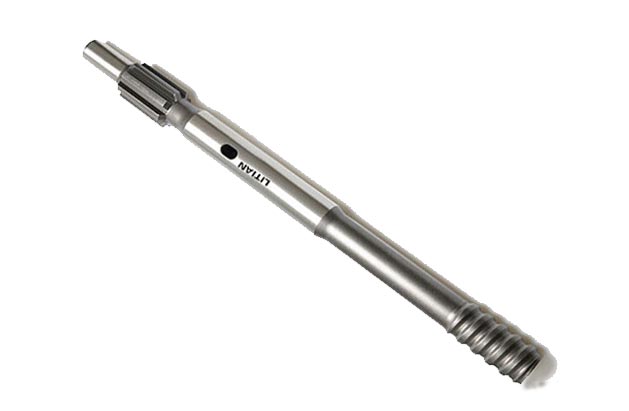

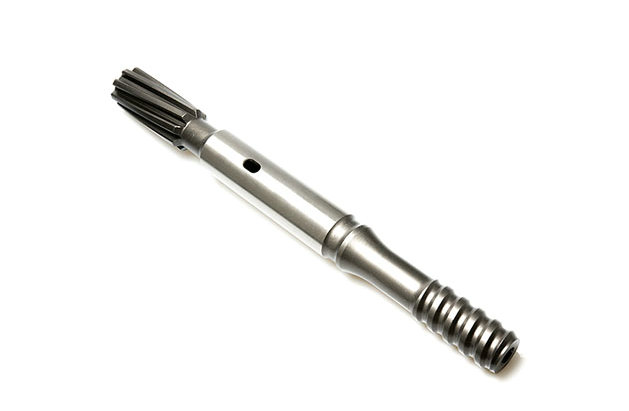

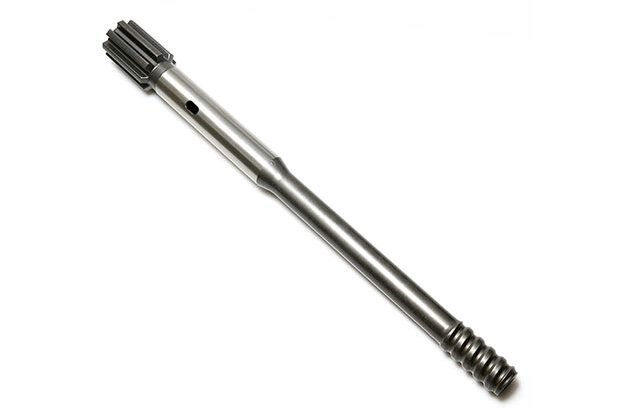

Litian shank adapters adopt high-quality steel and mature processing technology, can withstand the drilling requirements of strong rock formations, and has a longer service life, which can help customers improve rock drilling efficiency and reduce total costs.

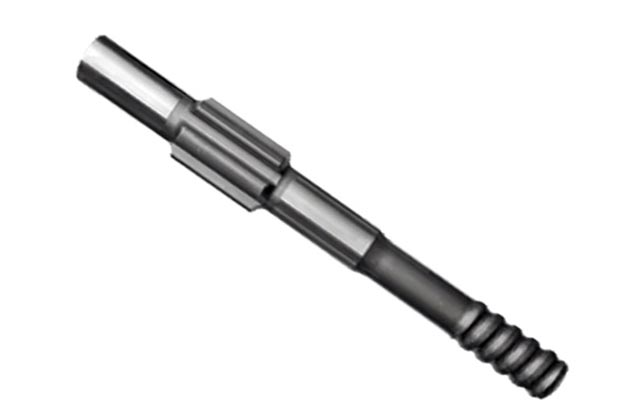

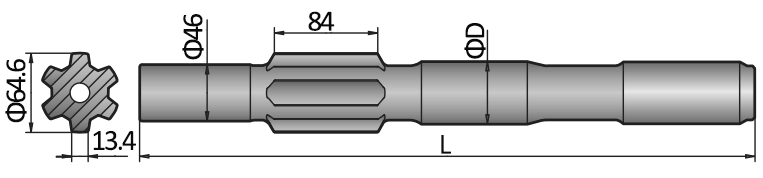

Our shank adapters are suitable for various brands of rock drills, such as Ingersoll-Rand rock drills: VL-140, YH30, YH50, YH65, YH65RP, YH70, YH70RP, YH80A, YH80RP, YH95 series, etc.
We can also design and produce various specifications of rock drill shank adapters according to your needs.

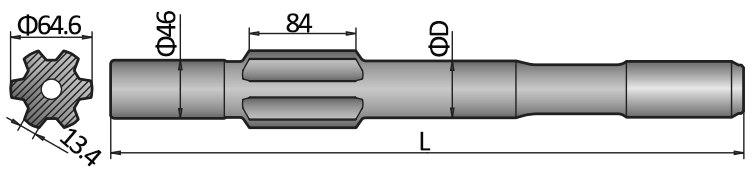

App. | Thread | Length | Diameter | Weight | Model No. | Similar Product Part No. | |
[mm] | [mm] | [kg] | Sandvik / Atlas Copo | ||||
| BE | T38 | 500 | 45 | 5.2 | T38*6D45-500 | 90516283 |
BE | T45 | 500 | 45 | 5.5 | T45*6D45-500 | 7305-7525-19 / 90516299 |

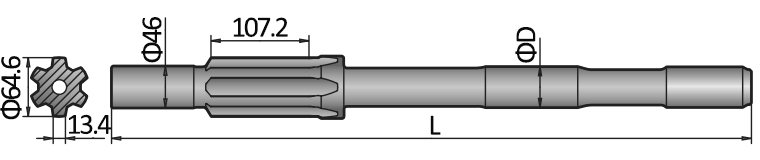

App. | Thread | Length | Diameter | Weight | Model No. | Similar Product Part No. | |
[mm] | [mm] | [kg] | Sandvik / Atlas Copo | ||||
| BE | T38 | 700 | 45 | 7.8 | T38*6D45-700 | 90516285 |
BE | T45 | 700 | 45 | 7.9 | T45*6D45-700 | 7305-7546-19 / 90516301 |
App. | Thread | Length | Diameter | Weight | Model No. | Similar Product Part No. | |
[mm] | [mm] | [kg] | Sandvik / Atlas Copo | ||||
BE | T38 | 500 | 51 | 5.5 | T38*6D51-500 | 90516284 | |
 | BE | T45 | 500 | 51 | 5.7 | T45*6D51-500 | 7305-7559-19 / 90516300 |
BE | T51 | 500 | 51 | 6.4 | T51*6D51-500 | 90516313 |
